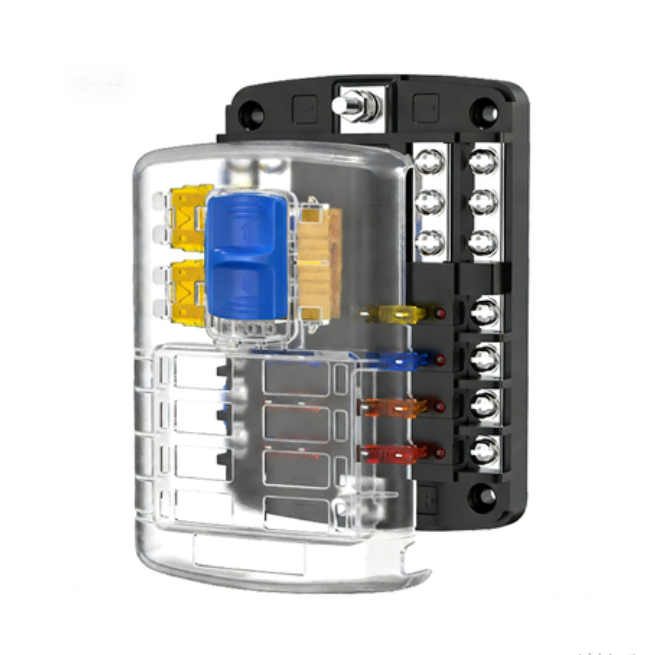

Product name：8ways fuse box
Product model：8Ways
Material:PA66+30GF+Nickel-plated Brass

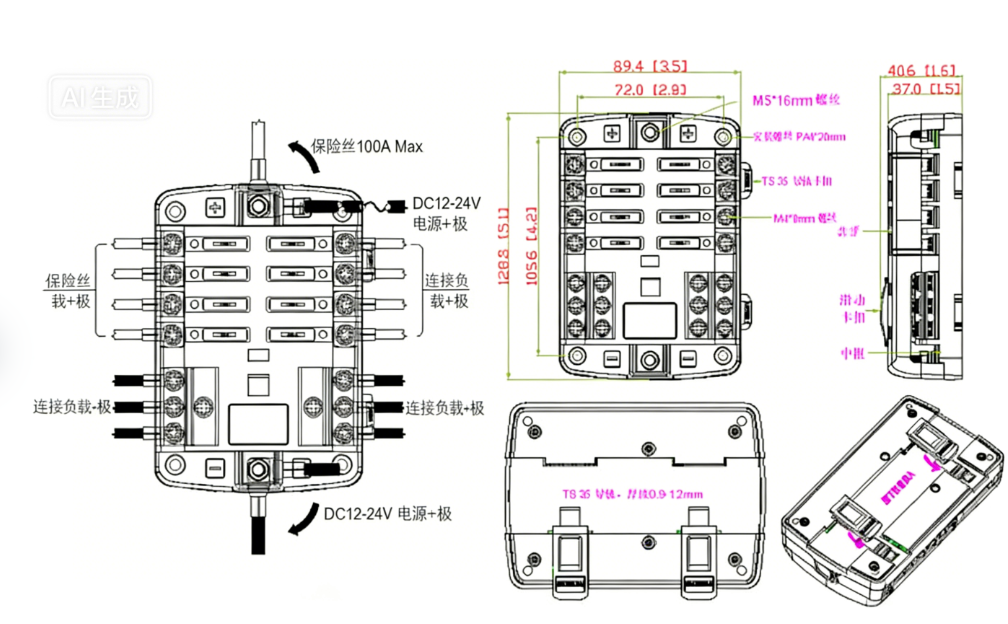

Product size:128.5*89.4*40.6mm
Working current:100A MAX/single 30A MAX
Workingvoltage:DC32V MAX
Protection Level:IP44
fire rating:UL94V-0
Temperature resistance range:-40C to+125C
Indicator light color:red led
Product advantages:
1. Create a streamlined total branch circuit protection system
2. Simplify wiring and eliminate messy cabling
3. Provide centralized fuse branch protection management for easy troubleshooting and maintenance
4. Clear labeling and circuit breaker indicator lights, saving time and effort when replacing burnt fuses
5. Allow easy expansion and addition of new electrical equipment without extensive rewiring
6. Use temperature-resistant 230°C nylon fireproof material to prevent fires even under overload or short circuits
7. Employ copper material for wiring to enhance conductivity and withstand higher currents
8. Slide-open cover ensures secure installation while enabling tool-free access for maintenance
9. Added TS35 Rail mounting method for convenient installation in electrical cabinets
10. Compliance with ABYC/USCG standards for secure terminal connections
