FB25-7748
Number of fuses accommodated: 10
Suitable fuse type: plug-in fuse
Rated current: Total maximum 350A, single MIDI 170A, single ATO 25A
Rated voltage: DC12V-24V, maximum withstand voltage 32V DC
Dimensions: 165 × 129 × 51mm
Working temperature range: maximum 50 ℃
Automatic reset function: does not support automatic reset
Contact material: 304 stainless steel screw+thickened pure copper nickel plated busbar conductive terminal
Number of poles: 10 poles
Series: SafetyHub150 DC Insurance

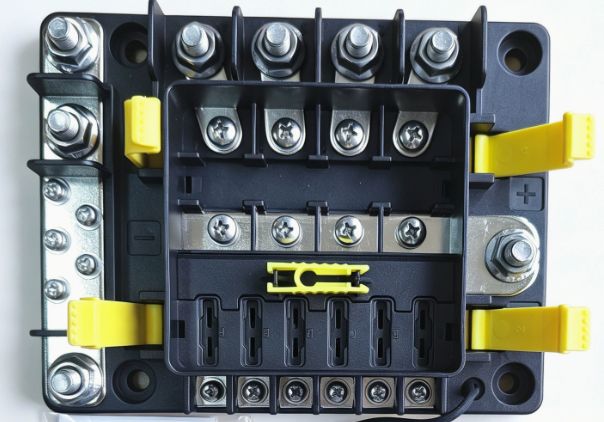

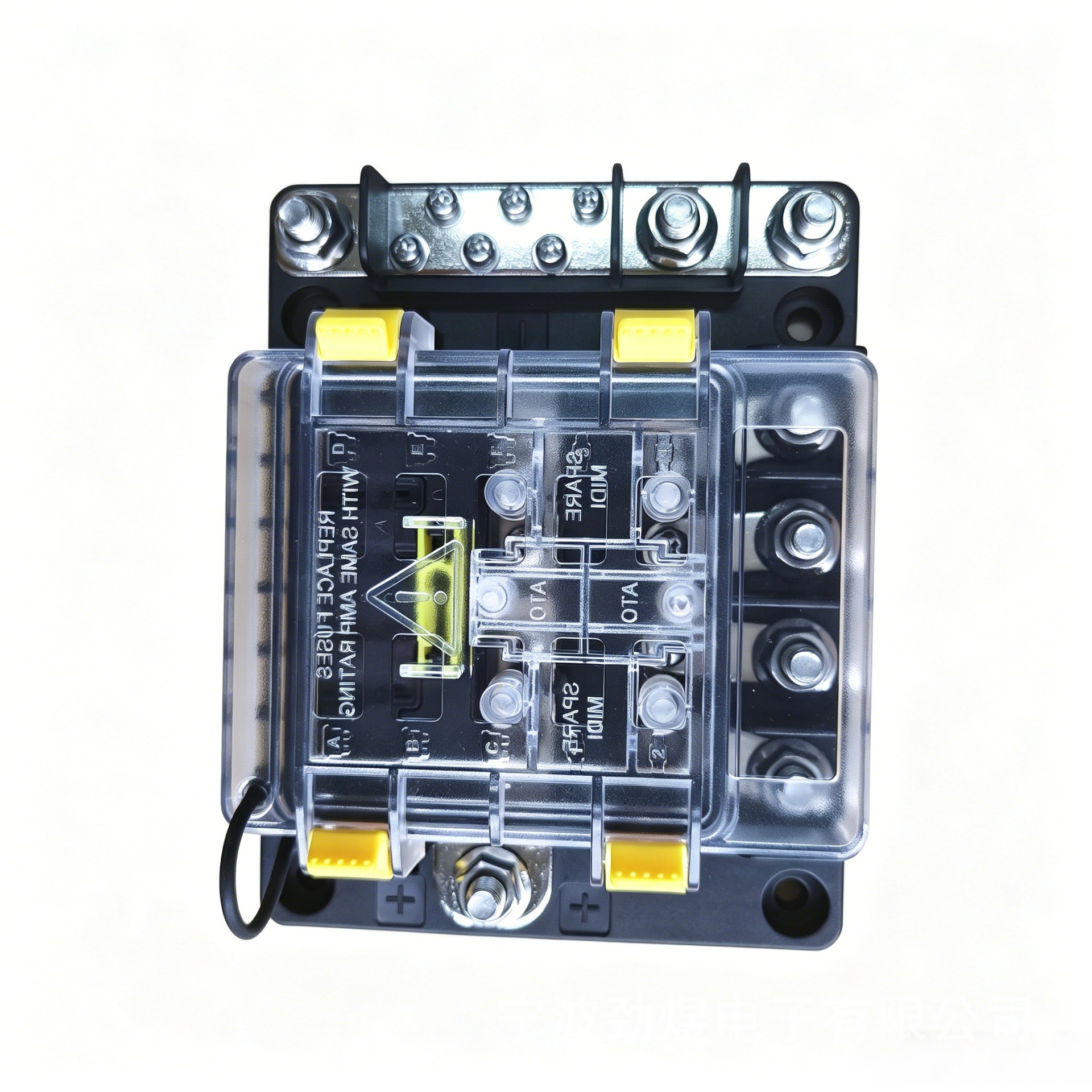

Product Overview
a 10 circuit integrated DC distribution fuse box with one input and multiple outputs and a total terminal. It adopts a mixed design of 4-channel MIDI high current fuse and 6-channel ATO/ATC standard plug-in fuse, integrates a common negative busbar, and is suitable for 12-24V DC systems. It is specially designed for RVs, yachts, off-road vehicles, and solar energy storage equipment, with a total load of up to 600A. It also provides protection for high-power equipment and conventional on-board electrical circuits, solving the problem of messy wiring in the whole vehicle in one stop.
2、 Product Structure Highlights
Integration of positive and negative electrodes
Dual specification insurance compatible, high and low power separated
Reserve backup insurance space
Quick fault identification
All stainless steel hardware accessories
Flame retardant safety base

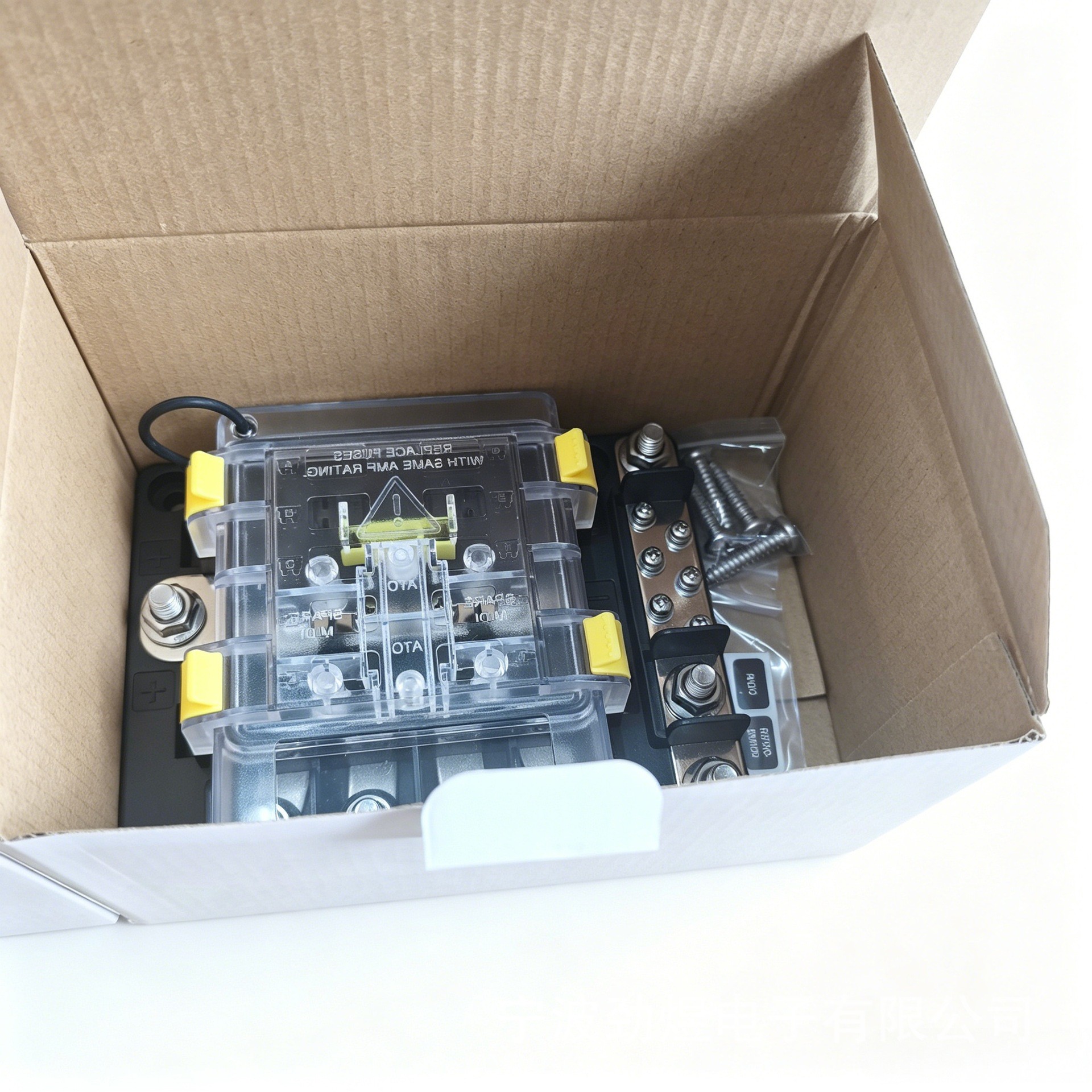

3、 Standard supporting accessories
Install and fix stainless steel screws * 4
Equipment function classification label sticker * 1
Fuse removal tool * 1
4、 Applicable scenarios
✅ Full vehicle power distribution for RV, camping trailer, and modified RV
✅ DC circuit branch protection for speedboats, yachts, and fishing boats
✅ Off road vehicles UTV、ATV、 Engineering machinery modification circuit
✅ Household solar energy storage system, outdoor mobile power distribution
✅ DC equipment such as agricultural machinery, RV air conditioning, water pumps, inverters, car lights, audio systems, etc
