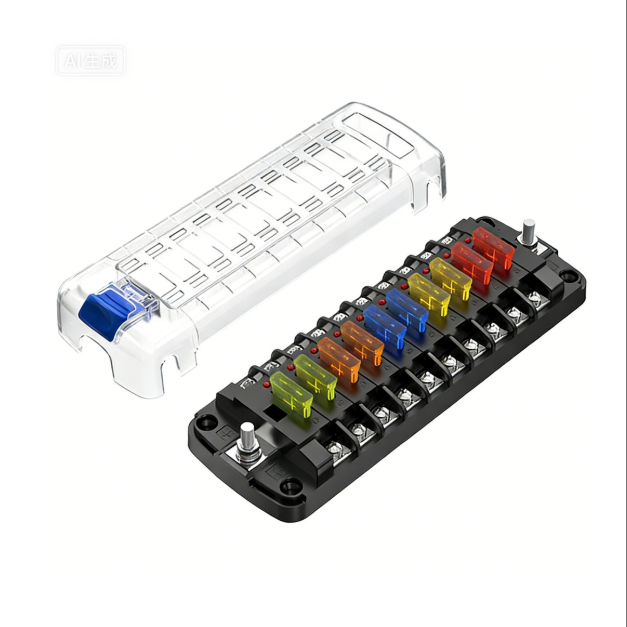

125A MAX 10Ways Fuse BOX(FLF10)

Productmodel:F10

Material:PA66+30GF+brass nickel plating

Product size:179.7*61.9*39.2mm

Working current:125AMAX/single30AMAX

Workingvoltage:DC36V MAX

Protection Level:IP44

Shunt adapter terminal model:#8 screw(M4)Y-type/O-typeCopper Lug

positive and negative terminals:#10-32 screw crimping terminal

Product advantages

1. Create a streamlined main branch line protection system.

2.  Simplify wiring and eliminate messy wiring.

3. Provide centralized fuse branch protection management for easy troubleshooting and maintenance.

4.  Clearly mark and disconnect warning lights, replace fuses in case of burnout to save time and effort.

5. Use heat-resistant 230C nylon fireproof material, even if overloaded or short circuited, no fire will occur.

6.  Use copper material to improve conductivity and withstand larger currents. 8. Slide open the cover to ensure stable installation and maintenance without tools.

7.  Tighten the terminal in accordance with ABYC/USBG standards
