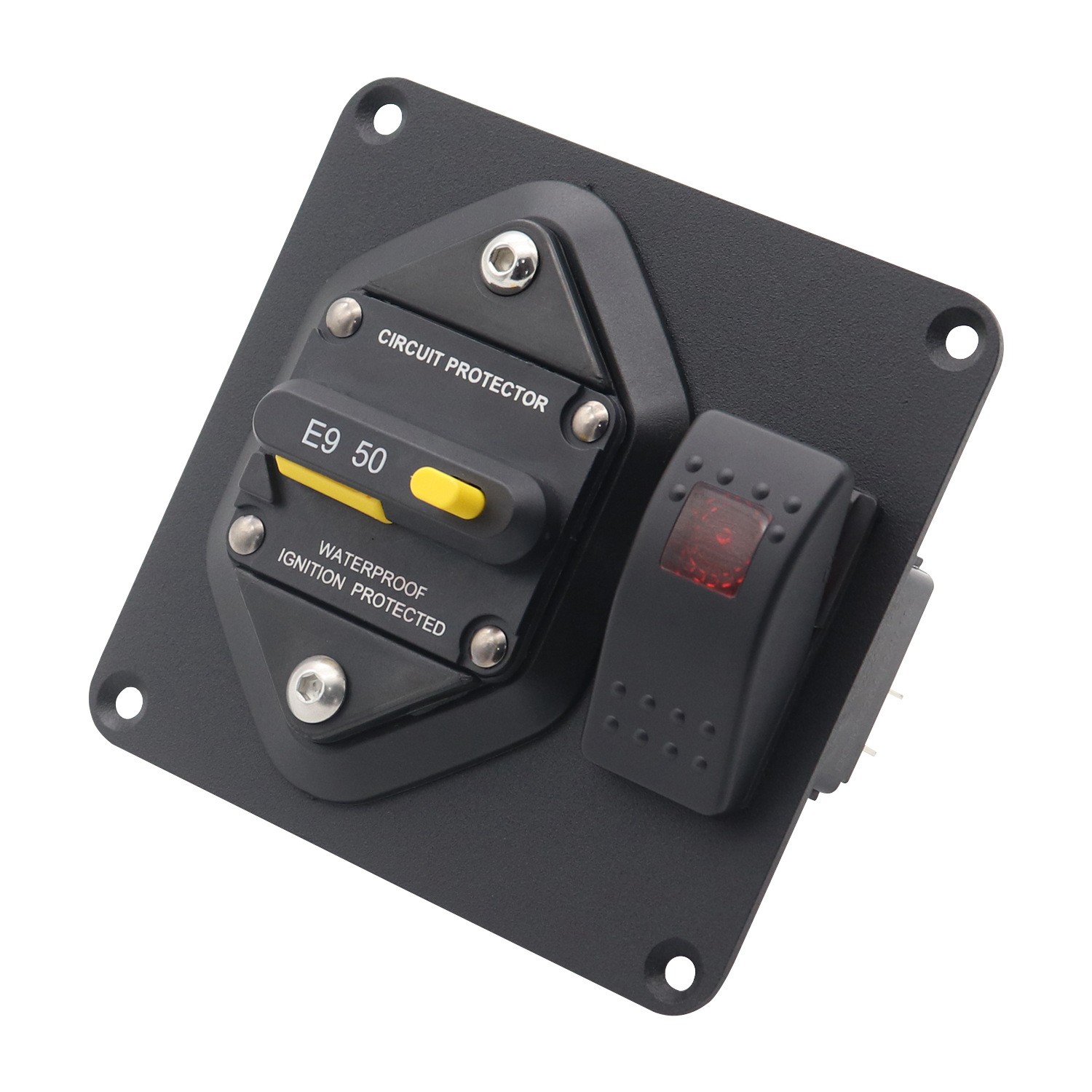

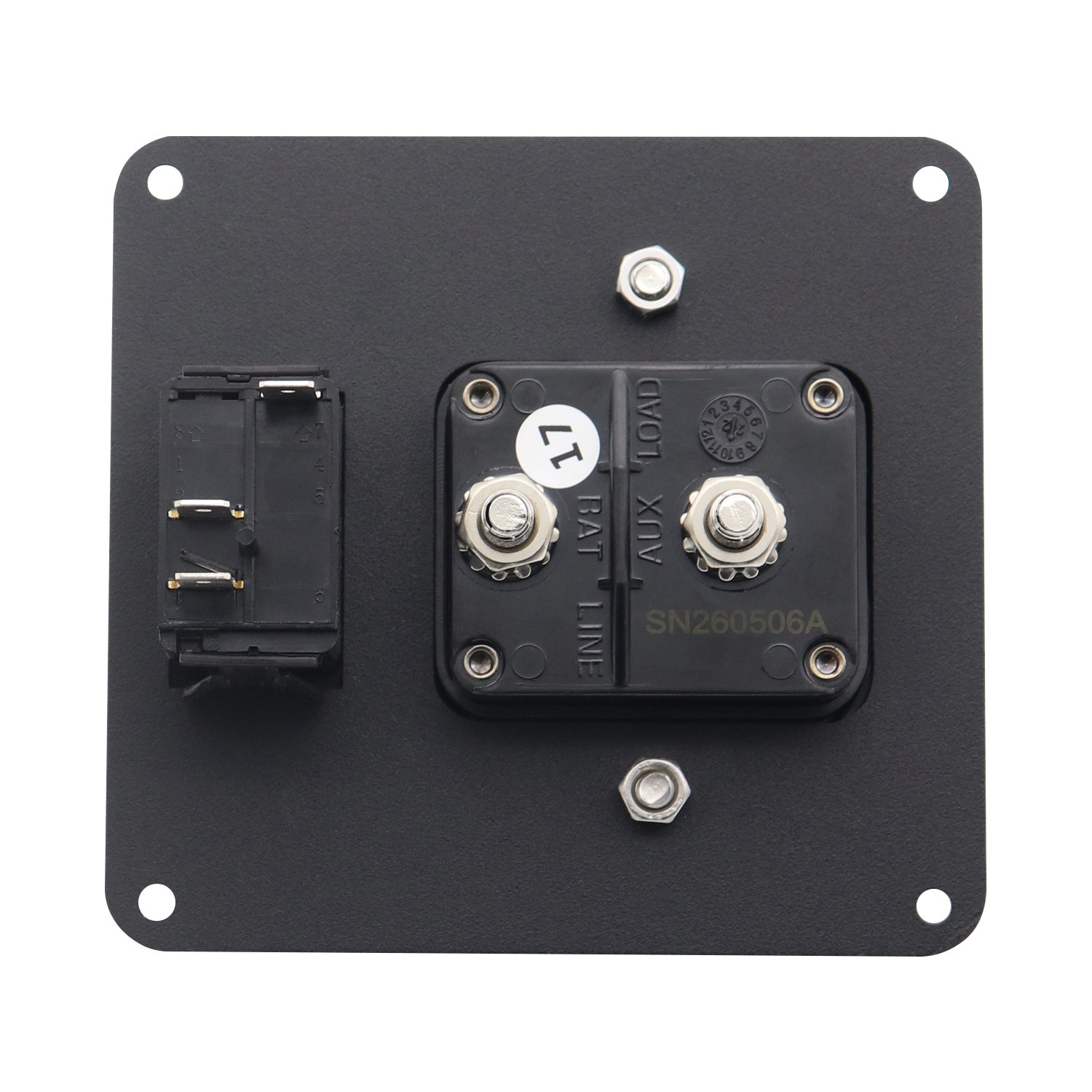

Product Name: 50A Circuit Breaker Panel+Ship shaped Rocker Switch ON-OFF 2-in-1 Combination
Product model: AOS11013-50A-300A
Product weight: 188g Gross weight: 232g
Product packaging: Paper box packaging
Product size: 106 * 100 * 40mm
Product rated voltage: 12/24V
Packaging size: 110 * 110 * 70mm
Circuit breaker specifications:
*The shell is thermoplastic and UL rated 94V0.
*The splash and dust protection level is IP67. The lighting type is IP66.
*Working temperature: -32 ° C to 82 ° C (-25 ° F to 180 ° F)
*Storage temperature: -34 ° C to 149 ° C (-30 ° F to 300 ° F)
*Stud size: 1/4 "-28 threads/inch.
*Rated torque: 1/4 "at 100in lb (11.3nm)
Type 3- Manual Reset (switchable)
*Surface installation, including protective stud insulation.
*Copper rivets, nickel plated, bolts, stainless steel.
*Compliant with SAE J1428, J1625, J553, J1171, UL1500 (ignition protection)
*Circuit breaker rated current: 50A
*Test data of circuit breaker shedding current: rated current 50A-300 circuit breaker; At 25 ℃, when the rated current is 1.35 times 67.5A, it will trip within 1800 seconds or less;
When the rated current is twice 100A, it trips within about 60 seconds;
Reminder: The experimental data is obtained in an environment of 25 degrees Celsius, and the jumping is affected by the ambient temperature. When the ambient temperature is below 25 degrees Celsius, the jumping time will be extended; When the ambient temperature exceeds 25 degrees Celsius, the duration of the trip will be shortened. Refer to the curve chart;
Switch specification parameters
Rated power: 12V 20A; 24V 10A
Product List: 1 set of combination panel, 3 switch wire harnesses of 15CM (2 red and 1 black); Install 4 screws
Usually applied to:
Solar energy system: In solar power generation systems, DC low-voltage circuit breakers are used to protect solar panels and battery packs from overload and short circuit damage. They can be installed at critical locations in the system to prevent abnormal currents from causing damage to batteries and other devices.
Automotive and marine electrical systems: DC low-voltage circuit breakers play an important role in the electrical systems of automobiles, trucks, ships, and other transportation vehicles. They are used to protect batteries, generators, motors, and other electrical equipment to prevent current overload and circuit short circuits.
Industrial control system: In industrial control systems, DC low-voltage circuit breakers are used to protect electrical equipment and control circuits. They can be used to control current, isolate circuits, and provide overload protection to ensure the safe operation of the system.
Electronic equipment and laboratories: DC low-voltage circuit breakers are also commonly used in electronic equipment, laboratories, and research and development environments. They can provide quick disconnection and reconnection of circuits, protecting electronic devices from the effects of excessive current or circuit faults.
In summary, DC low-voltage circuit breakers are suitable for many scenarios that require protection and control of DC circuits, including solar energy systems, vehicle electrical systems, industrial control systems, as well as electronic equipment and laboratories
