5-way vehicle and boat rocker switch panel

Product Overview

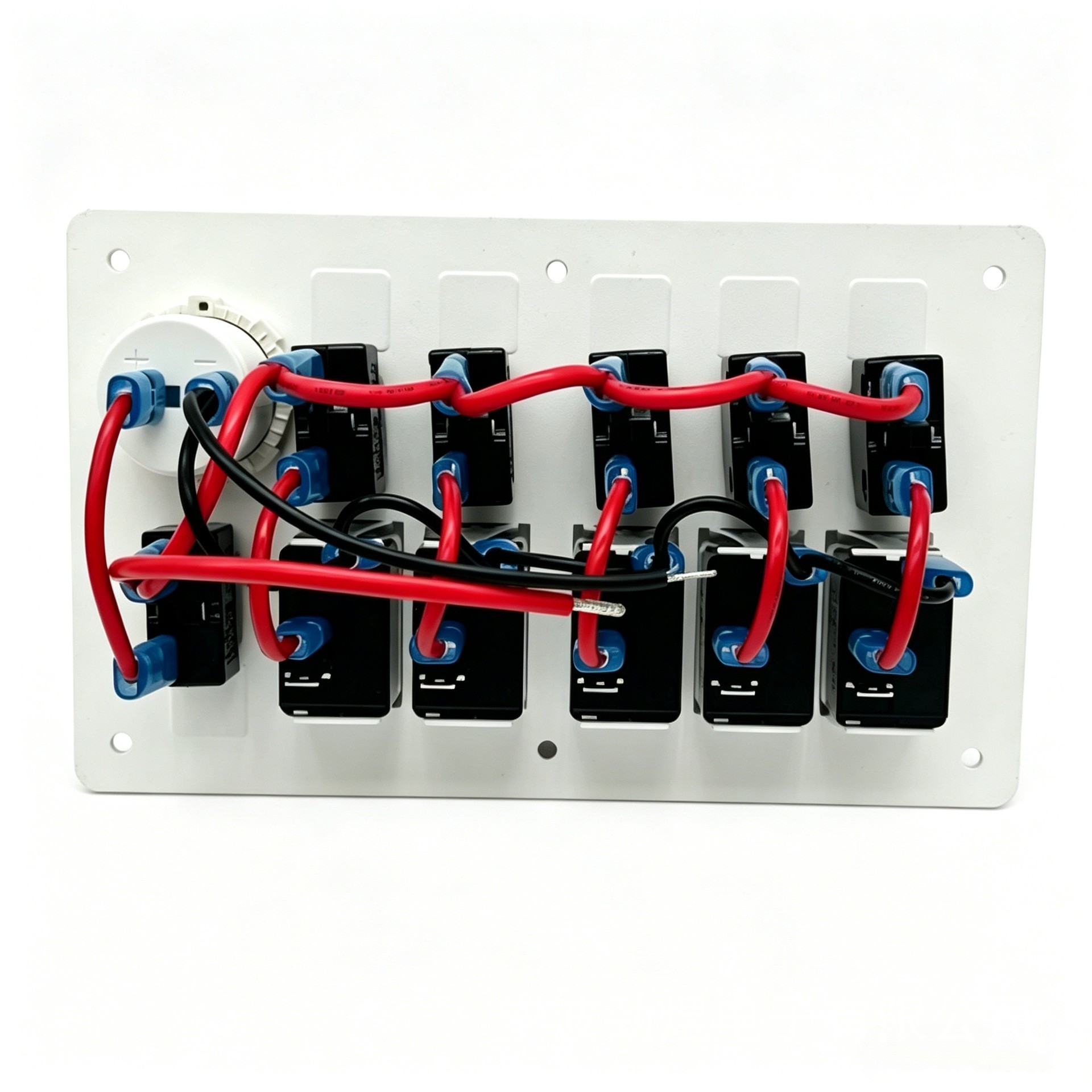

5-way DC distribution rocker switch panel, aluminum shell, compatible with RV, yacht, fishing boat, modified vehicle DC12/24V electrical system; integrated with 5-way independent SPST rocker switch + circuit breaker + 12V power socket DS1011, each way with independent overload protection, built-in indicator light, multi-channel electrical appliance centralized control, waterproof and corrosion-resistant, preferred for vehicle and boat modification.

Electrical parameters

Single-channel rocker switch rating: 12V DC 20A / 24V DC 10A

Maximum total current of the panel: 45A

Rocker switch: SPST (Single-Pole Single-Throw) ON-OFF, with 5 independent control channels

Protection configuration: circuit breakers 5A×3, 10A×2, 15A×1

Additional interface: DS1011 12V power outlet ×1

Applicable voltage: DC12V / 24V, universal for vehicle and vessel DC systems

Physical specifications

Panel dimensions: 190.5mm × 114.5mm

Hole size: 174.0mm × 85.0mm

Shell material: aluminum

Product Highlights

✅ 5-circuit independent control, each circuit equipped with a circuit breaker, automatically trips in case of overload, ensuring safety and reliability

✅ Aluminum panel, corrosion-resistant and high-temperature tolerant, suitable for humid and bumpy environments in ships and RVs

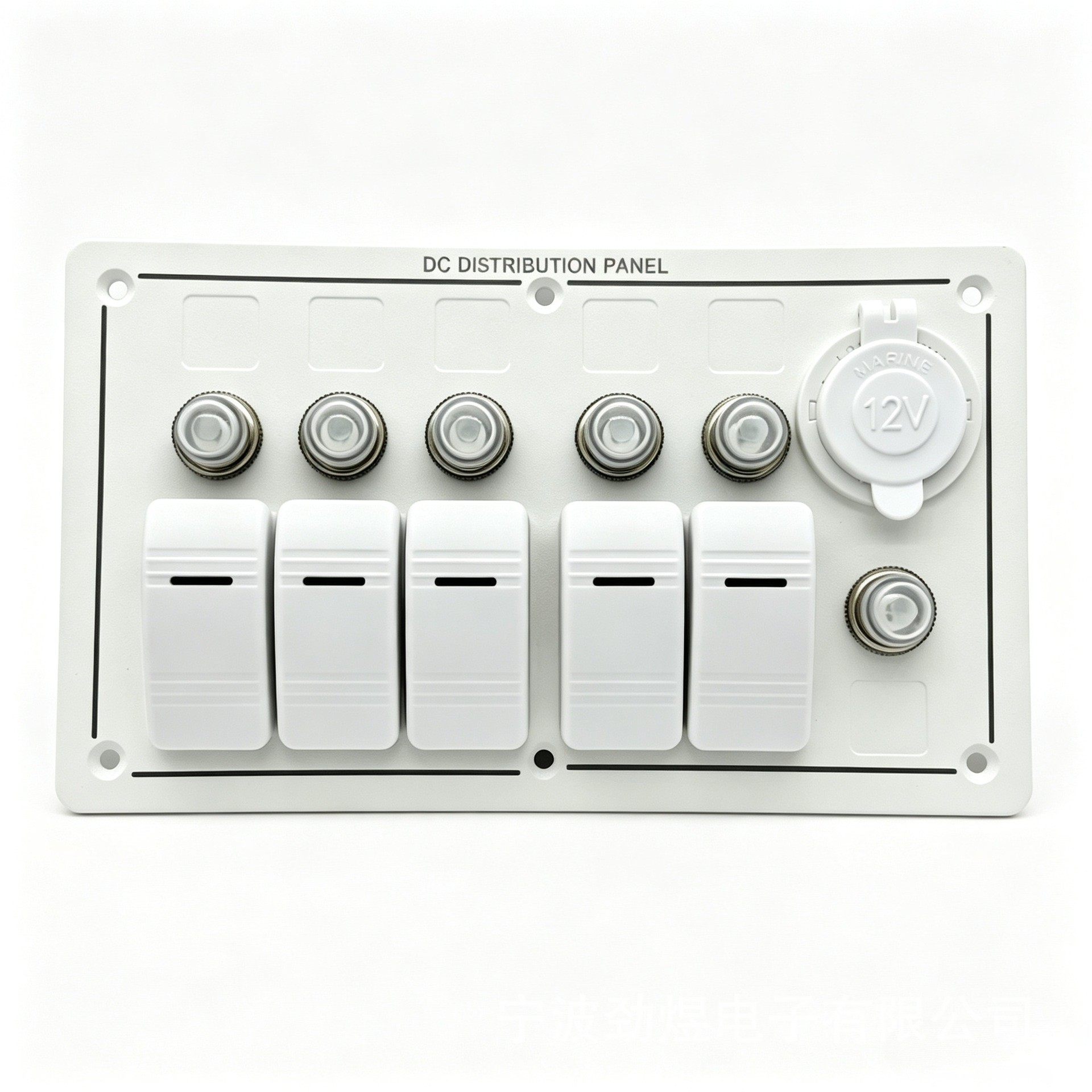

✅ Equipped with a DS1011 12V power socket, allowing for external device connection and power expansion

✅ SPST rocker switch with indicator light, visualizing the power status with the indicator light, making the state clear at a glance

✅ Two versions are available: circuit breaker type / fuse holder type, meeting different customer needs

✅ Easy installation, embedded hole installation, centralized power distribution for vehicle and ship modification

Specification Remarks

Note: This model is a circuit breaker, PN-LB5H/S1, with a configuration of 5A*3+10A*2+15A*1. The fuse holder version of the same series, PN-LF5H/S1, is available for consultation and ordering. It is suitable for DC12‑24V applications in recreational vehicles, yachts, fishing boats, and modified vehicles. The maximum total current of the panel is 45A.
