Product Description:

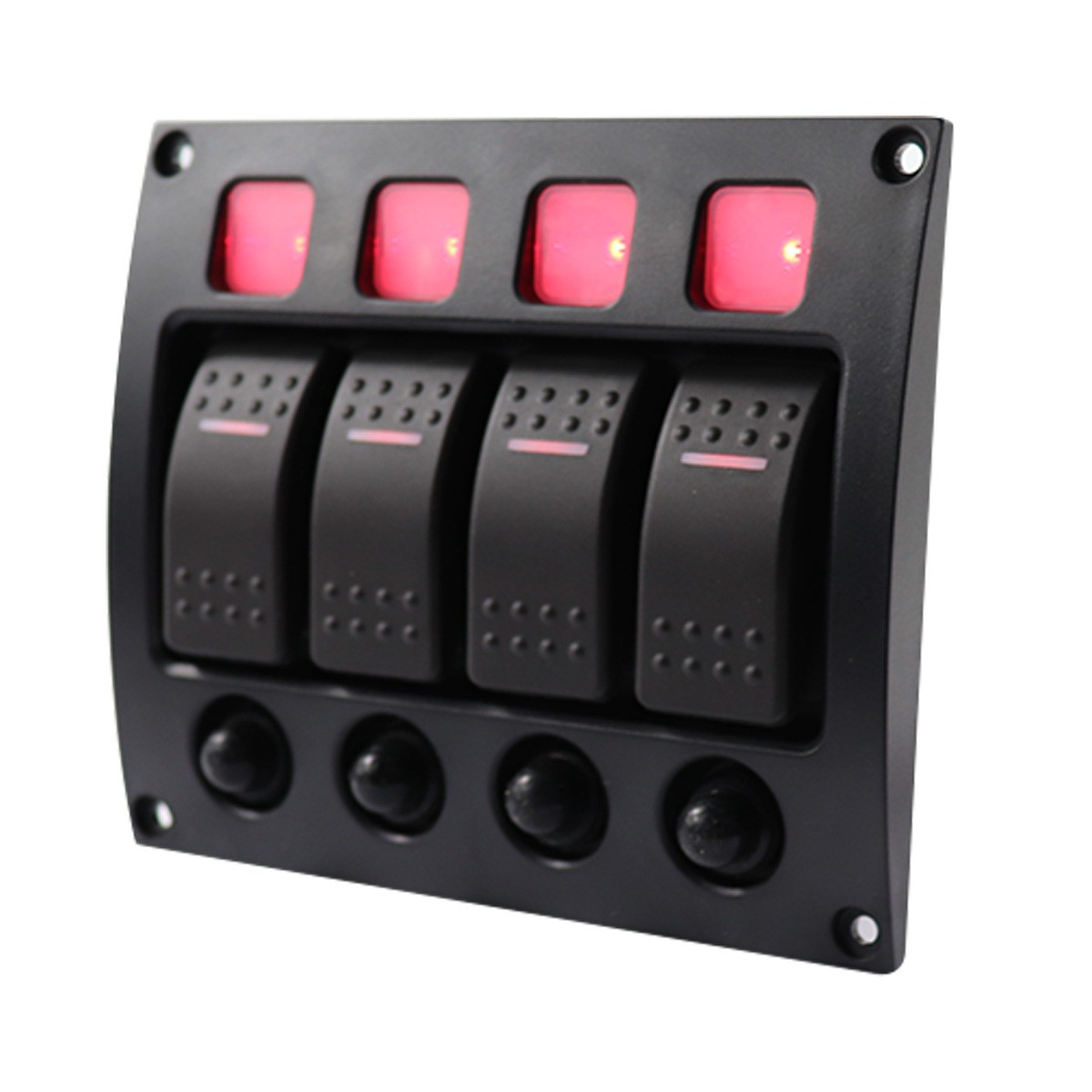

Product Name: 4P Combination LED Red Light Indicator Black Panel Switch
LED indicator light color: red light
Overload protector: 6A/10A/15A/20A Product applicable voltage: DC12/24V
Protection level: IP66

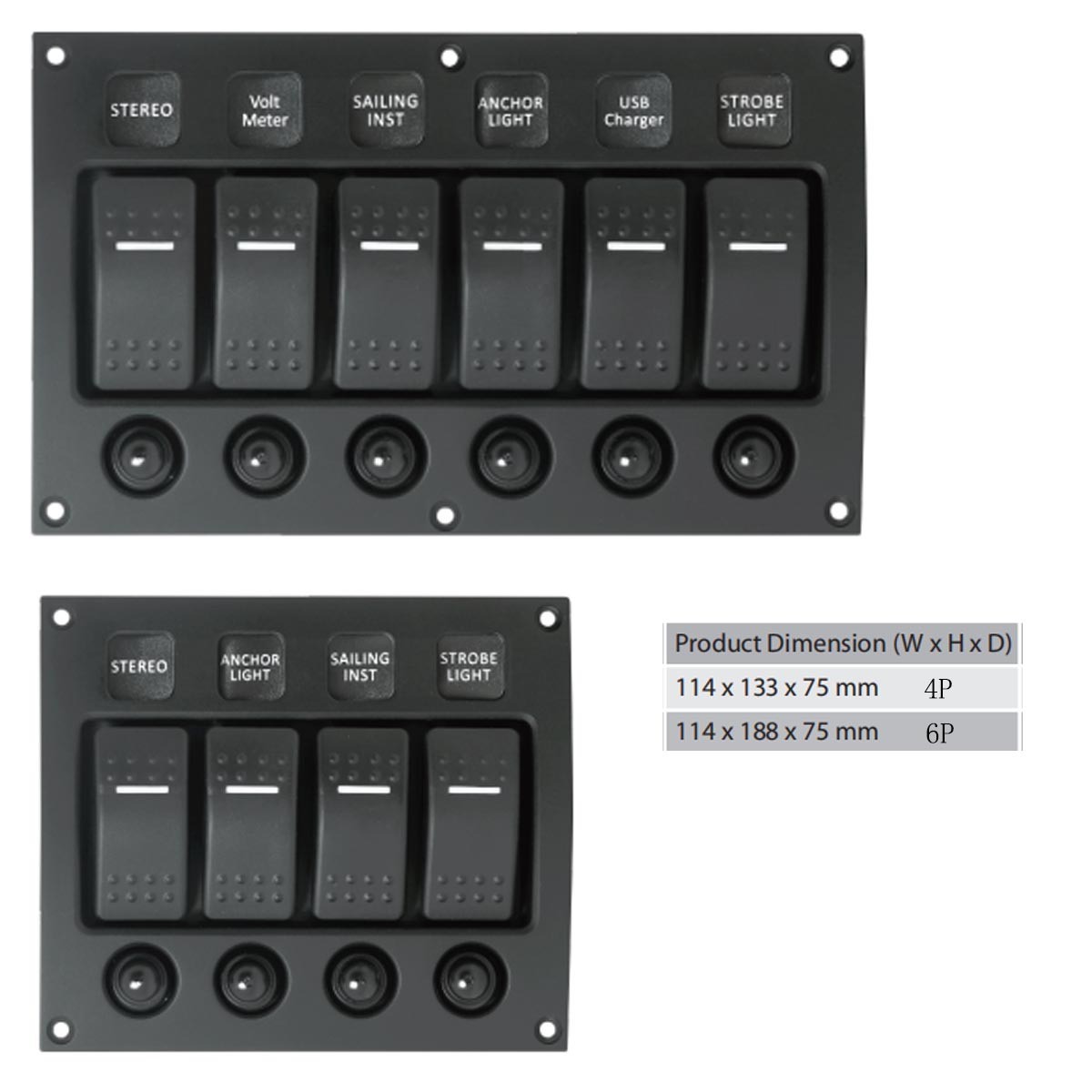

size:4P:114*133*81mm

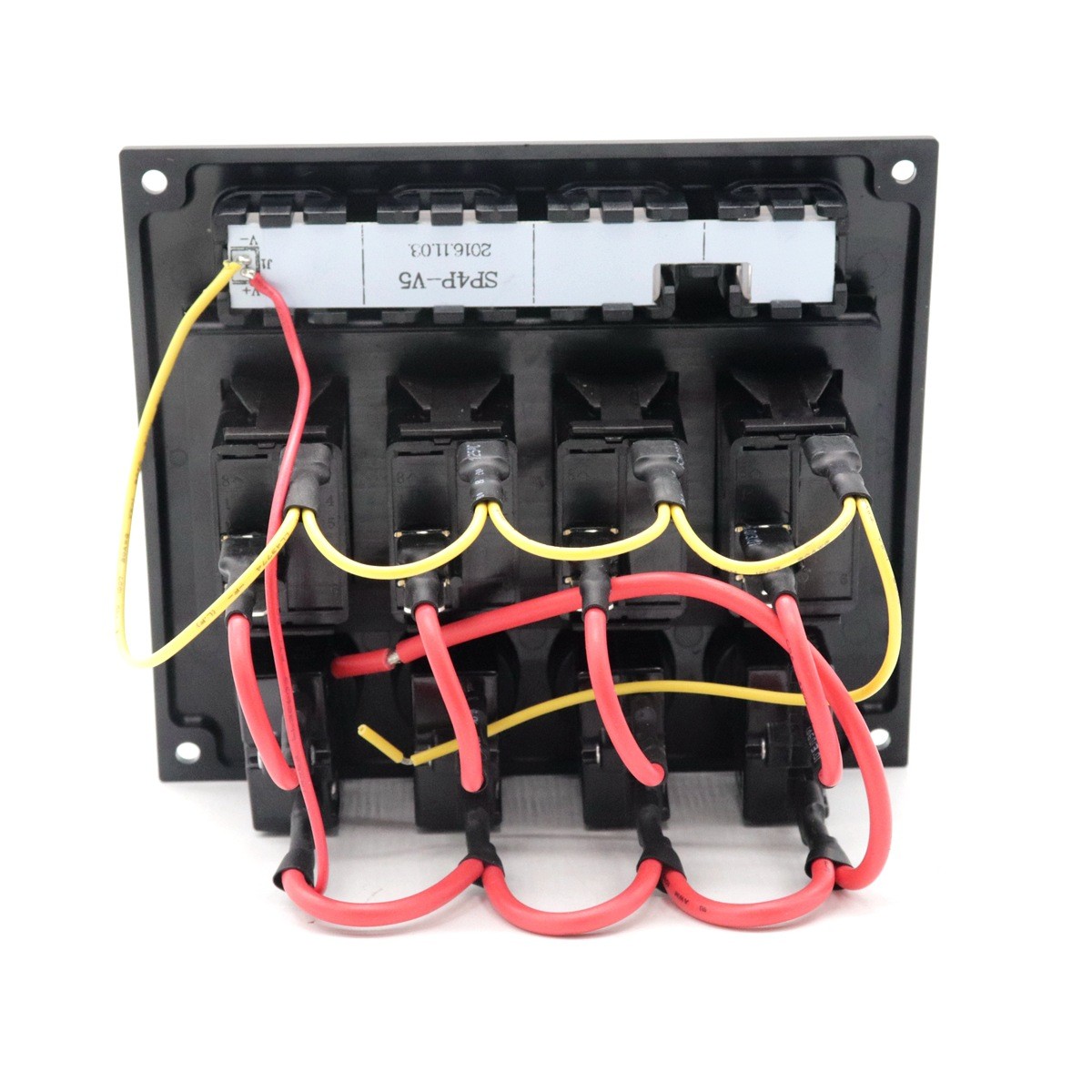

1. Connect the positive wire (red) to the DC power source (battery) and the LED negative feed wire (yellow) to the DC negative bus.
2. Connect the 3rd pin of the switch to the positive pole of the equipment's incoming line
3. Apply the required stickers to the concave areas of the corresponding branches
4. Use self tapping screws to secure the panel in the desired installation position
