Product information

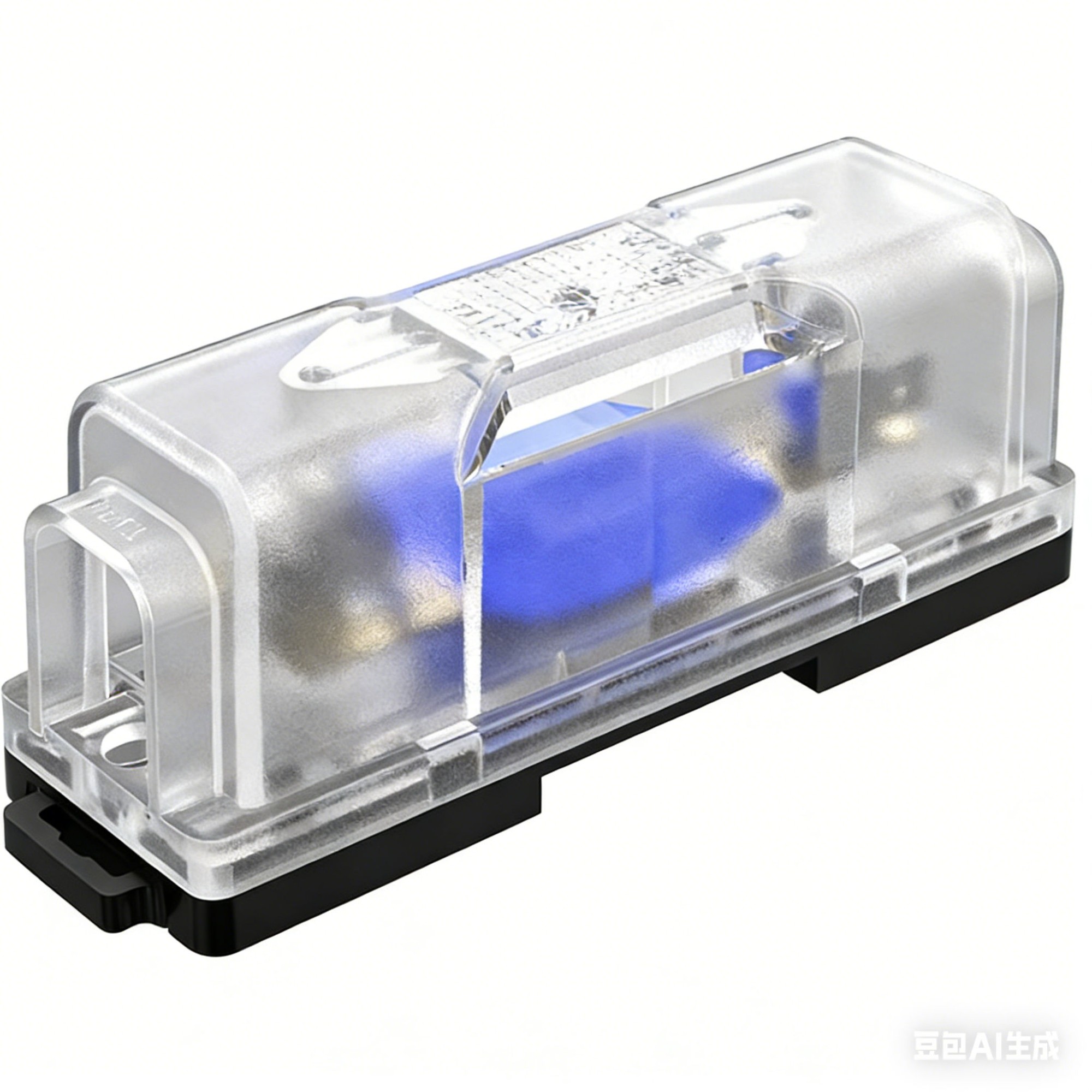

Productname：SF62 fuse holder with blade fuse
Material:PA66+30GF+brass nickel plating

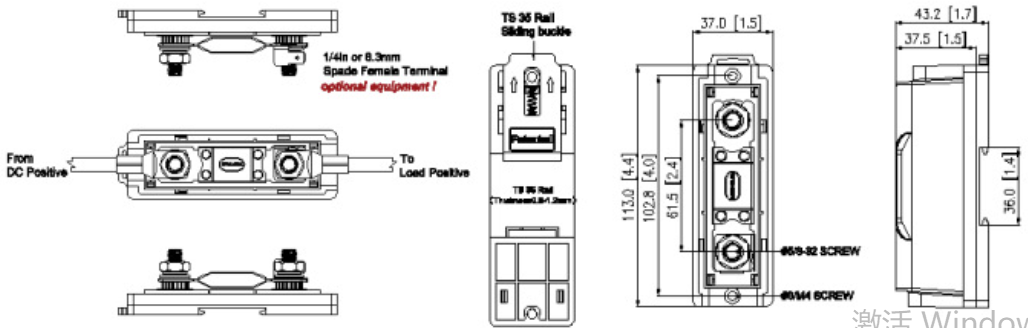

Product size:113*37*43.2mm
mounting bracket:TS35 guide rail, thickness 0.9-1.2mm
Working current:500A MAX
Workingvoltage:DC36V MAX
Protection Level:IP44
Execution standard:IEC 60269
Shunt adapter terminal model:1/4inor 6.3mm shovel shaped female terminal
positive and negative terminals:#5/8-32 screw crimping terminal
Indicator light color:red
Productcolor:black+translucent
Product advantages:
Create a streamlined main branch line protection system.
Simplify wiring and eliminate messy wiring.
Provide centralized fuse branch protection management for easy troubleshooting and maintenance.
Clearly mark and disconnect warning lights, replace fuses in case of burnout to save time and effort.
Allow easy expansion and addition of new electrical equipment - no need for extensive rewiring.
Use temperature resistant 230C nylon fire-resistant material, even if overloaded or short circuited, no fire will occur.
Use copper material to improve conductivity and withstand larger currents.
Slide open the cover to ensure stable installation and maintenance without tools.
9 Add TS35 Rail rail installation method for easy installation in the cabinet.
10. Tighten terminals that comply with ABYC/USGG standards
