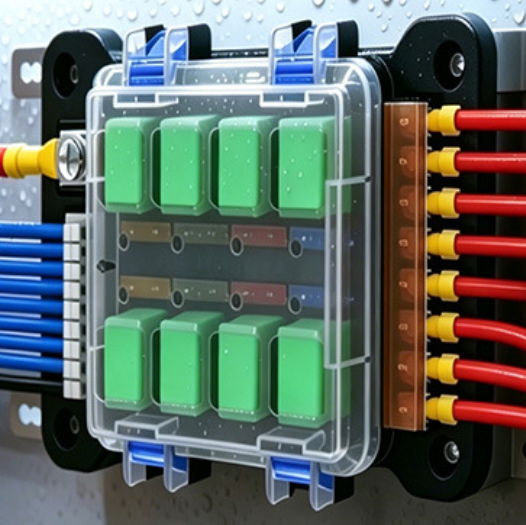

8-Way Blade Fuse & Relay Box Specification Table
| Item | Specification |
|---|---|
| Product Name | 8-Way Blade Fuse Relay Box |
| Operating Voltage | Power supply: DC 12V–32V; Control circuit: DC 12V |
| Rated Current | Total rated 60A; Max 25A per circuit |

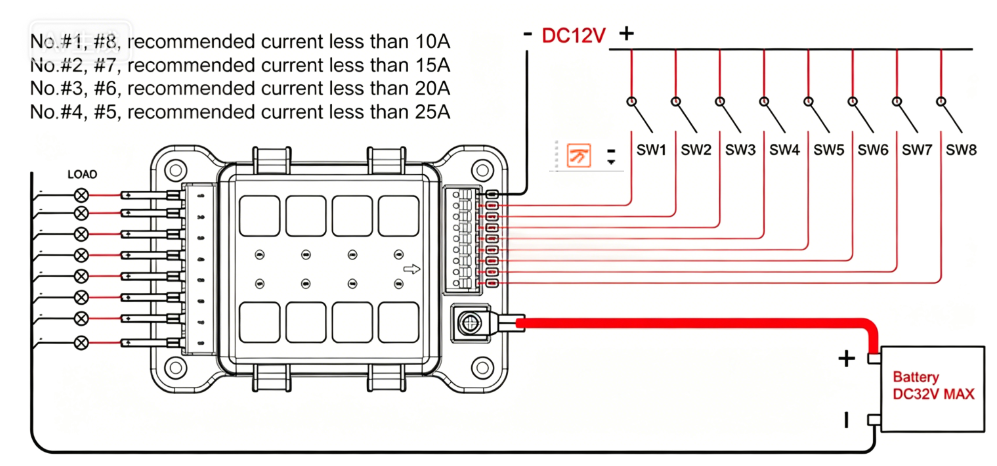

| Branch Current Rating | Circuit 1# / 8#: ≤10A; Circuit 2# / 7#: ≤15A; Circuit 3# / 6#: ≤20A; Circuit 4# / 5#: ≤25A |
| Housing Material | PA66 flame retardant material, UL94 V-0 flammability class |
| Terminal Material | Nickel-plated copper, high conductivity & anti-oxidation |
| Protection Class | IP65 (Fuse compartment area) |
| Operating Temperature | -40°C ~ +125°C |
| Terminal Size | M4 / M6 threaded terminals |
| Wiring Method | Bolt fastening / Quick plug-in connection |
| Applicable Wire Gauge | Control branch: 14–22 AWG; Main power positive: 2–6 AWG |
| Compliance Standard | ISO 8820-3:2015 |
| Application Scenarios | Automobiles, yachts, RVs, marine vessels, ATVs, trucks, industrial equipment, etc. |
