Product Features:

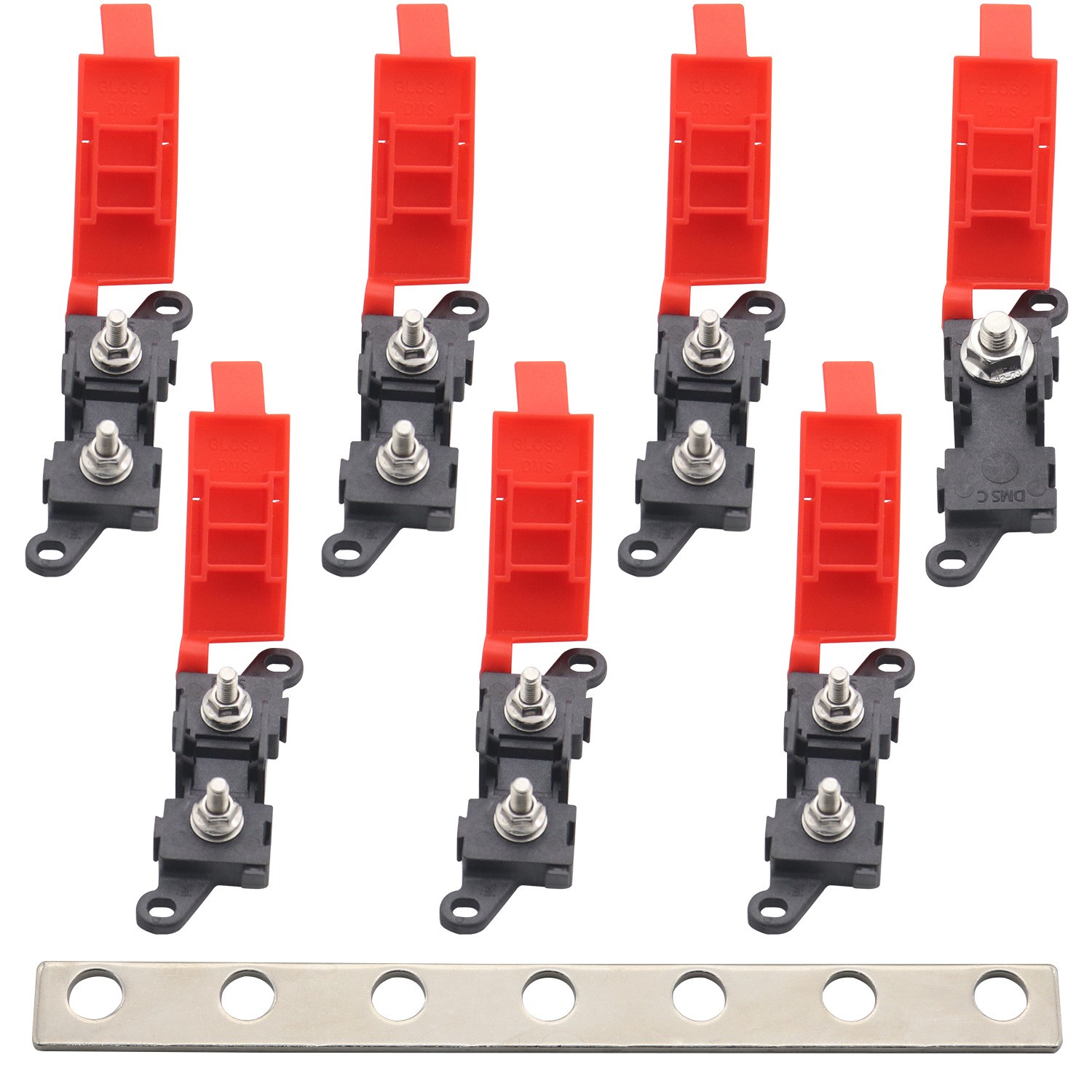

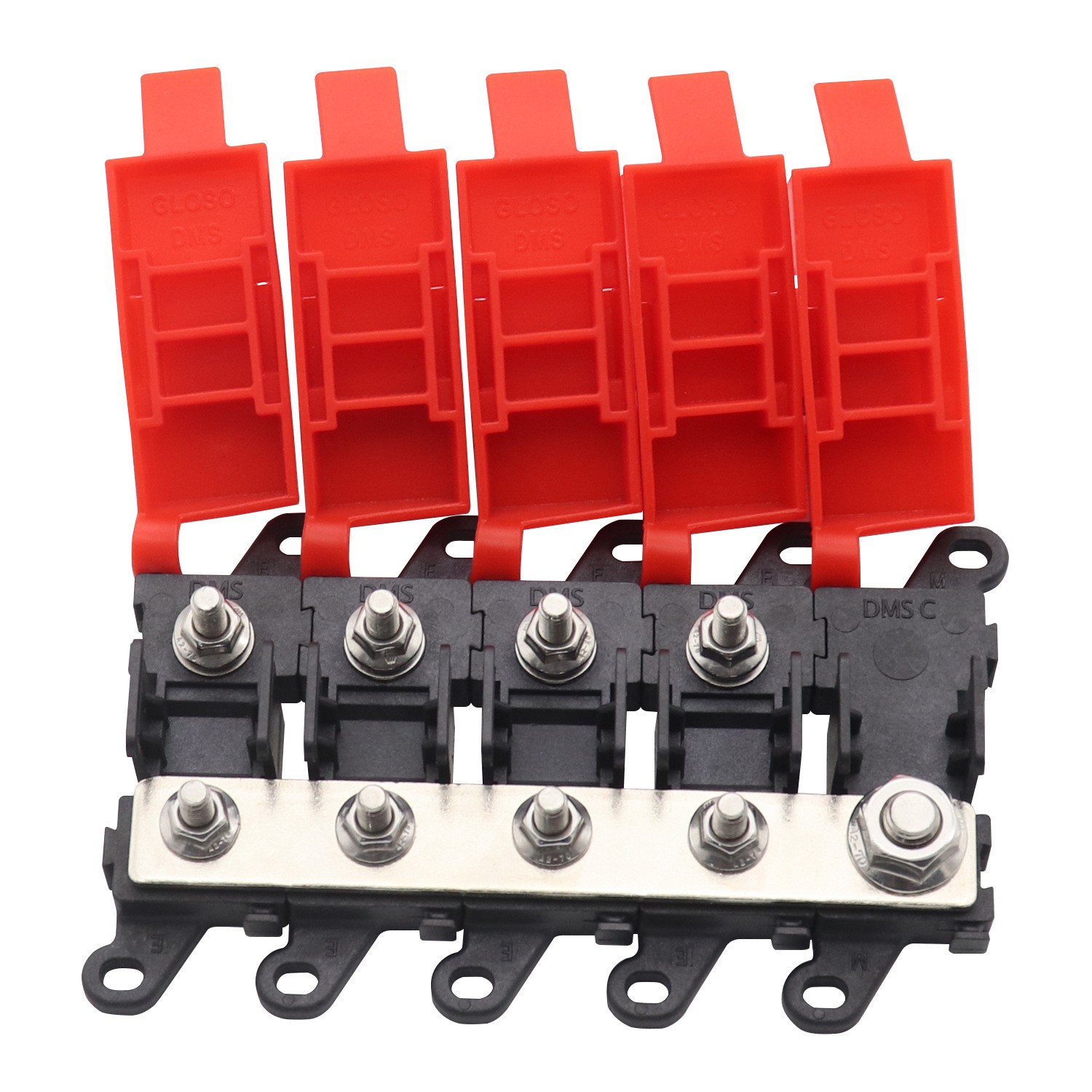

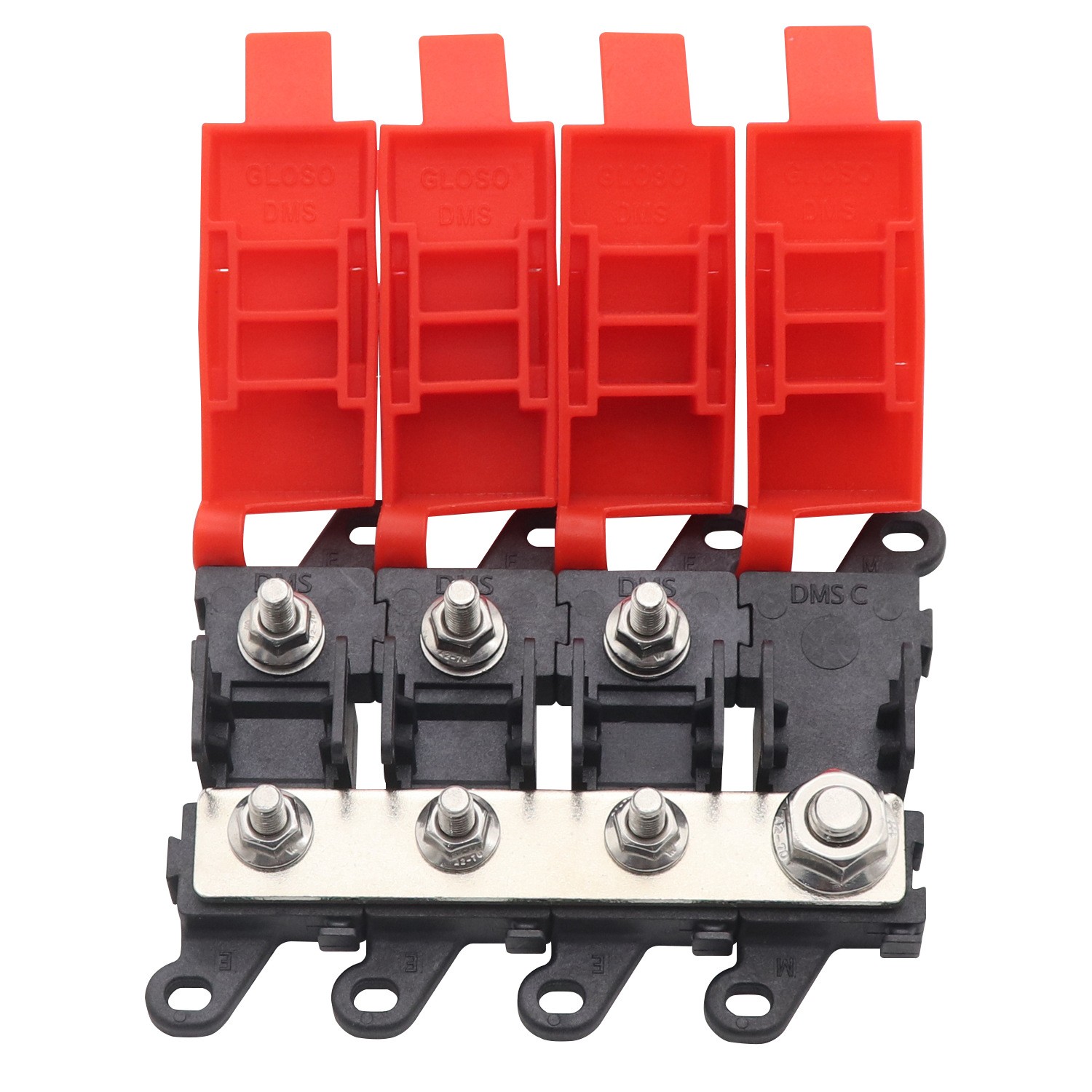

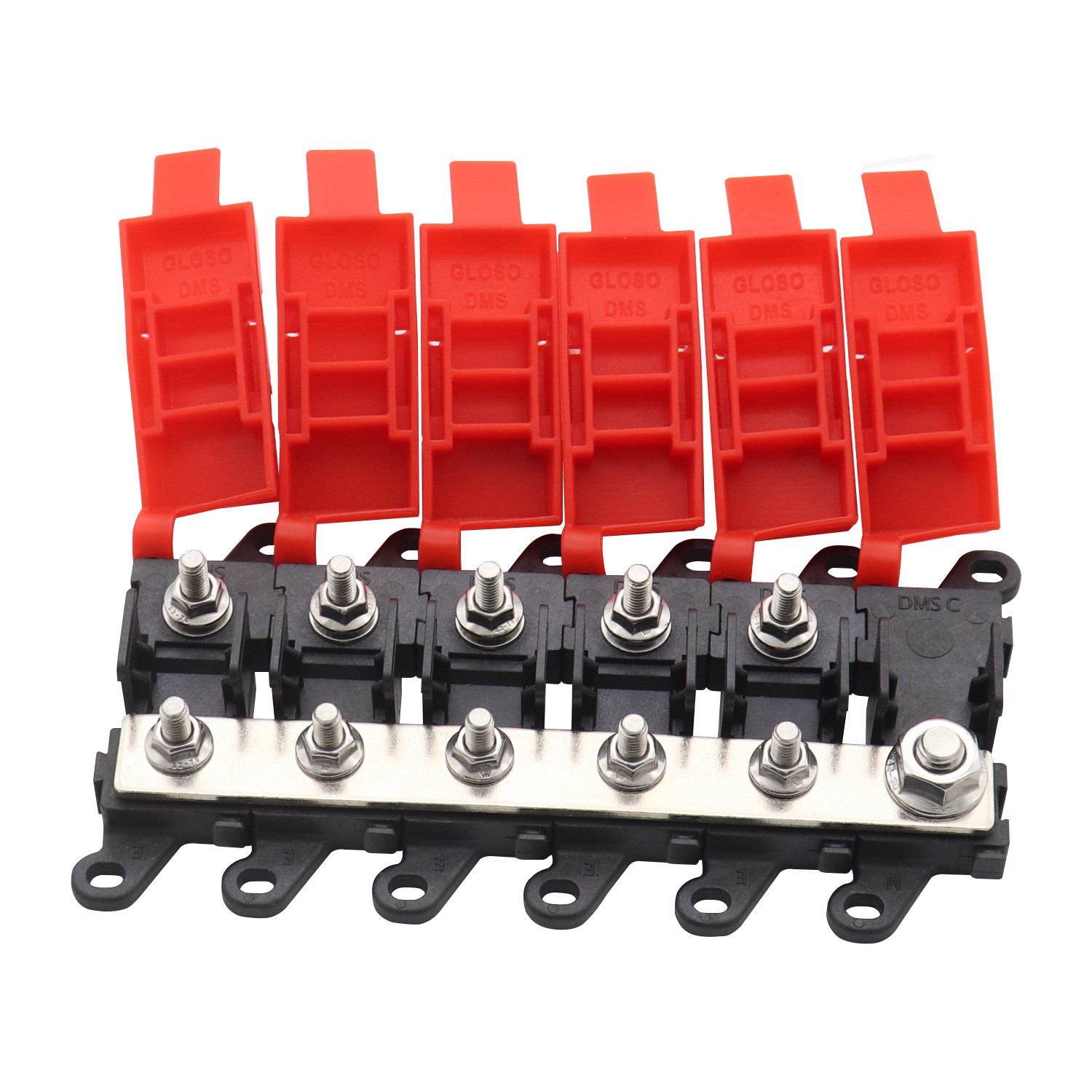

BDFS fuse (medium fuse) multipole fuse block
For the main branch main fuse configuration, it is suitable for up to 6 MIDI fuses with all busbars connected to a single input stud.
DIY modularization is possible
Rated value: MIDI fuse block 200A
The total rated value of the combination is 400A continuous. Temperature: -40 degrees Celsius (-40 degrees Fahrenheit) to 85 degrees Celsius (185 degrees Fahrenheit)
Torque: Installation amount: 22 pounds (2.5 Nm)
Fuse module: M5, 44 inch pounds (5 Nm)
Input module: M8, 88 inch pounds (10 Nm)
Material
Silicone rubber cover, temperature resistant to 200 degrees Celsius.
PPS base, 94V0 grade, temperature resistance 230C.
Stud (input unit): M8 stainless steel with screw nut Stud (midi fuse block): M5 stainless steel, K-nut Related products: BDFS (midi fuse, 23-200A)
