Product Description:
Product Features

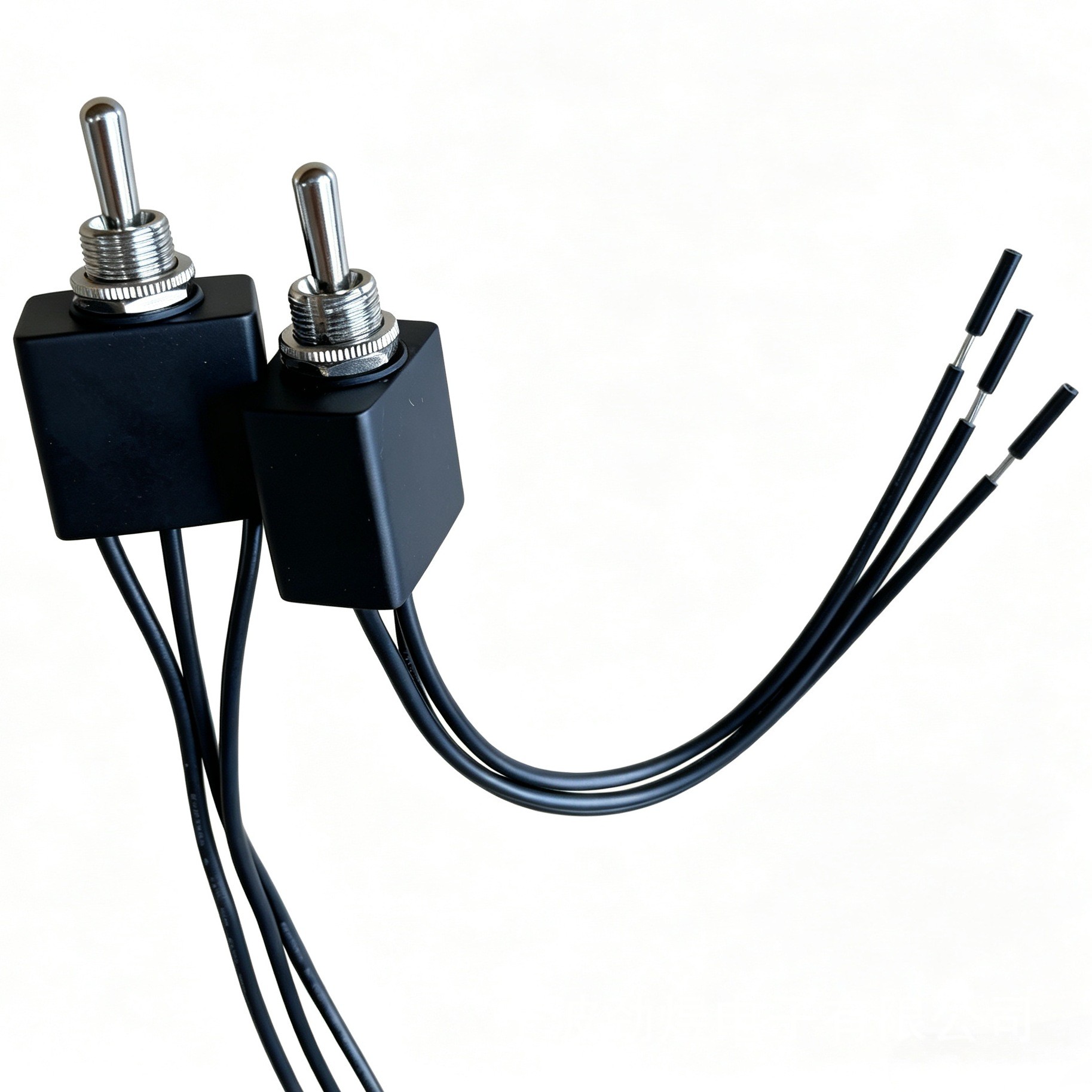

The switch lever is equipped with an O-ring seal and silver contacts, featuring excellent conductivity and arc resistance
Pre-wired at the factory, with a PVC-coated shell
Thread specification: 15/32-32, thread length 12mm, rod diameter 12mm
The maximum thickness of the adapter panel is 6.35mm, and the length of the toggle lever is 17mm
Technical Specifications
Operating voltage: 12V / 24V dual voltage
Rated current: 20A at 12V, 10A at 24V
Overall dimensions: height 29 × depth 55 × width 16 mm
Protection level: IP68
Switch type: SPDT single-pole double-throw, positions ON-OFF-ON
Packaging: Packed in a single plastic bag
