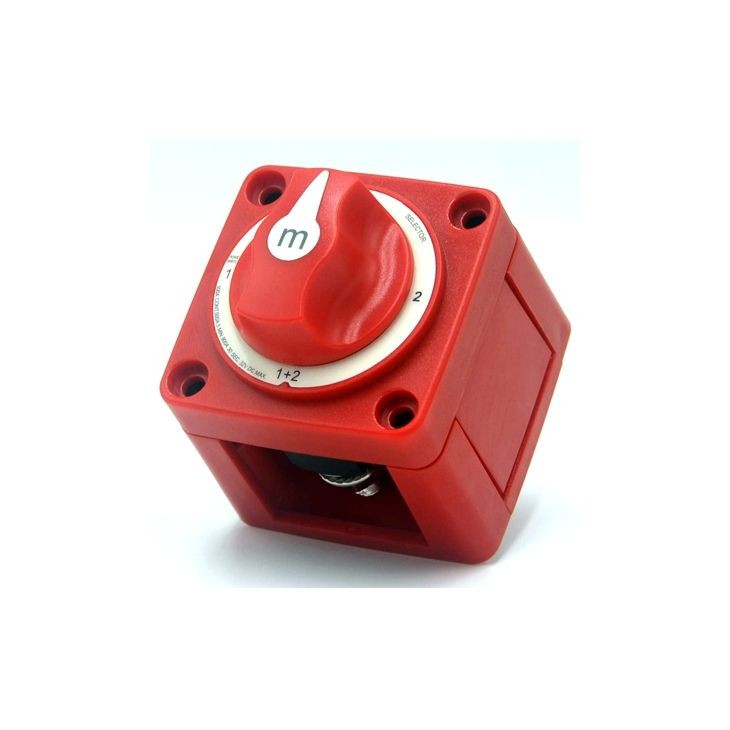

Battery Switch For Marine Caravan Boat RV(FBM236007)

Description:

Current 300A,Voltage 32V DC

Note：Do not turn the switch off while the engine is running.

Key Features:

● Switch Type：Selector 4 Position● Continuous Rating：300A DC

● Intermittent Rating (5 Mins)：500A DC

● Cranking Rating (10 Secs)：900A DC ● Voltage Rating：DC 32V(Max)

● Mounting：Recessed &Surface

● Operating Temperature：-20℃～＋60℃

● Terminal Studs Size：3/8''-16 ( M10x3 ) ● Terminal Studs Material：Silver Plated Copper ● Mounting Hole： Rear Mounting Hole： 59mm

Front Mounting Hole： 66mm

● Certified： IP65／CE／SAE J1171
