Product Description:
Description:

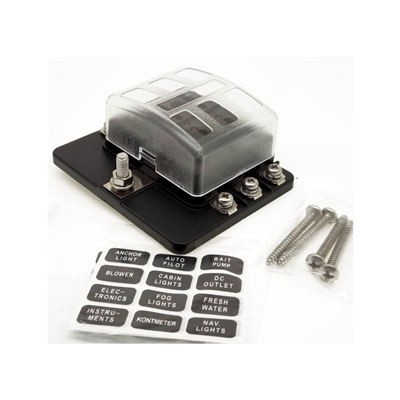

6 Way Circuit Car Auto Fuse Panel with lamp ATC ATO
6 Circuits with CoverInput terminal rating: M5 threaded studs(100A 32V DC.
Input wire size: #4-6 AWG.Output terminal rating: 30A max per circuit.
Output wire size: #12-16 AWG.
Red LED indicates when fuse is broken.
Size of Panel: 70.0mmx85.0mm
Key Features
all marine, motor-home, automotive & motorsport applications
Cover material:Clear PC mterial(With clear, vibration resistant & snap fit cover)
Specification: The box can be secured via 4 pre molded holes
Output Current rating per circuit / fuse Up to 30 amp
Input Current rating per box: Up to 100 amp
Output connections Standard 6.3mm spade terminals
